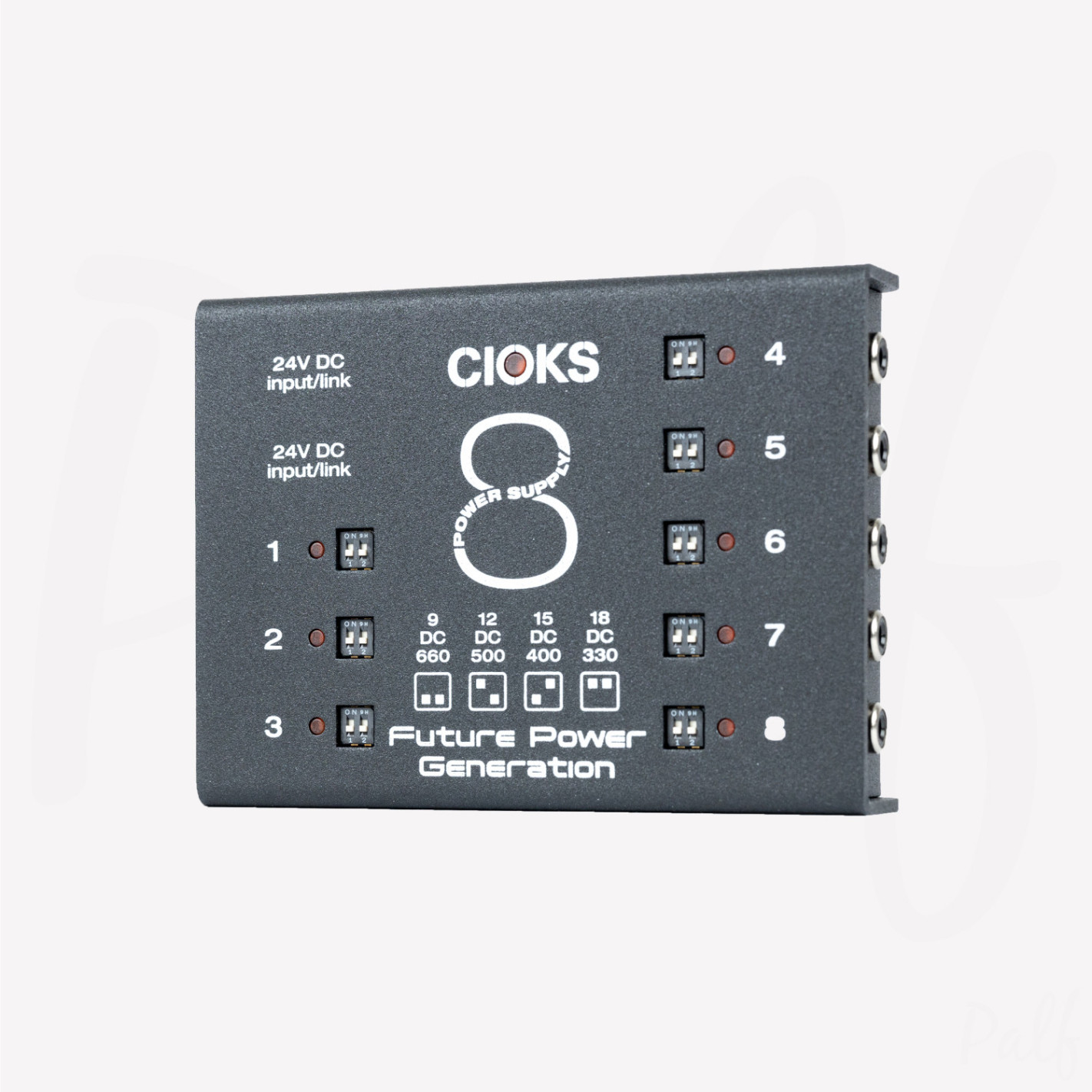

Cioks 8 Expander

£175.00

CIOKS 8 is our largest switch-mode power supply extender and it features 8 isolated outlets which each deliver 9V DC with 660mA. All eight outlets offer four selectable voltages (9V, 12V, 15V and 18V).

CIOKS 8 was primarily designed to be used as a large extension to DC7 in case you need more outlets. If you are looking for a super powerful power supply setup to power a large pedalboard, the combination of CIOKS DC7 and CIOKS 8 will definitely be an awesome solution as this combo will give you 15 isolated outlets in total with 4 switchable voltages on each outlet plus a 5V USB outlet to charge your smartphone or tablet (courtesy of DC7)*.



Features

  • CIOKS 8 has the same groundbreaking 1-inch profile (25,4mm) as CIOKS DC7
  • Ultra-low noise achieved by multistage filtering
  • 8 isolated DC-outlets, 6W each
  • 660mA at 9V DC on each outlet
  • 4 selectable voltages on each outlet
  • Global overload status LED
  • Total maximum output power 48W
  • Mounting hardware for Pedaltrain and Templeaudio boards included
  • Compatible with CIOKS GRIP for drill-free mounting on Pedaltrain boards**
  • 12 Flex cables included
  • 24V DC Link cable included
  • Designed in Denmark, assembled in Poland
  • 5-year worldwide warranty

Specifications

  • Outlet 1-8:
  • 9V DC / 660mA or
  • 12V DC / 500mA or
  • 15V DC / 400mA or
  • 18V DC / 330mA each

CIOKS 8 Manual Rev. 1.02 Of 09.04.2020
